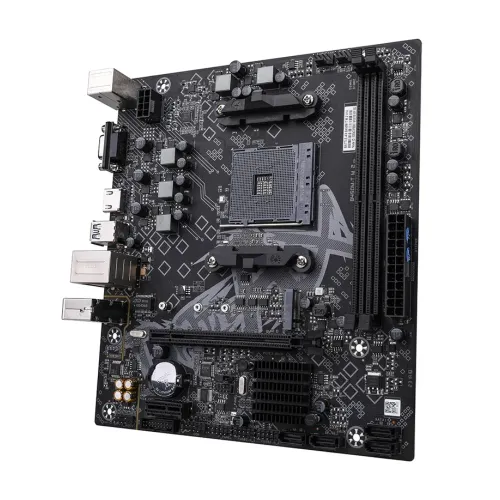

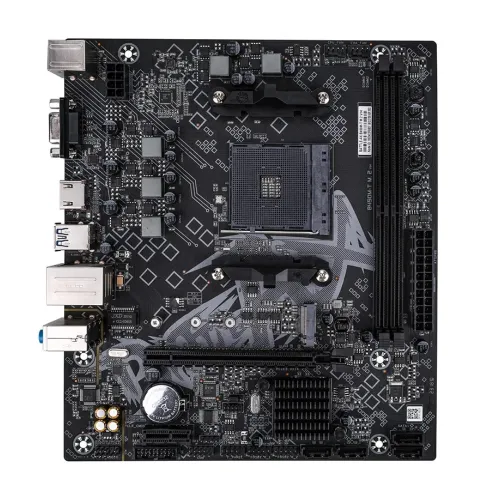

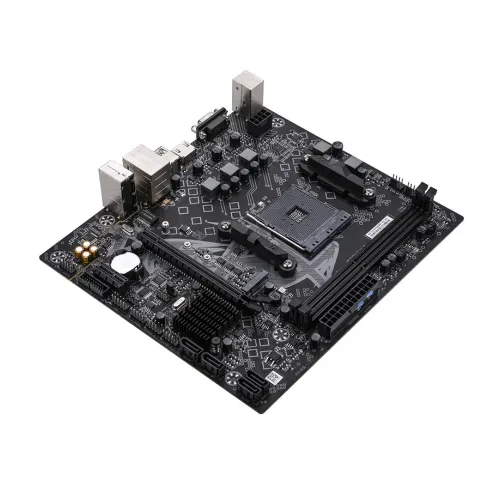

Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard
৳ 8,700.00 ৳ 7,999.00
Short Description
- Model: BATTLE-AX B450M-T M.2 V14
- Supported CPU: Ryzen 5000/ 5000 G/ 3rd/ 2nd/1st Gen for Socket AM4
- Supported RAM: 2x DDR4 Up to 3600(OC) Max. 64GB
- Graphics Output: 1x HDMI 2.0, 1x VGA
- Features: 1x M.2 slot, 1x RTL8111H Gigabit Ethernet Card
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard | |
| Chipset | AMD B450 | |
| BIOS | 128M UEFI, support multiple languages | |
| Form Factor | M-ATX 220mmx195 mm |
|
| Audio | Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels | |
| Expansion Slots | ||
| PCI | 1 PCIe 3.0 x16 slot 1 PCIe 3.0 x1 slot |
|
| M.2 Socket | 1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory Supports Extreme Memory Profile (XMP) memory technology Supports dual channel memory technology |
|
| Maximum Memory | Up to 64GB of memory (a single socket can support up to 32 GB of memory) | |
| Connector & Ports | ||
| HDMI | 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution | |
| VGA (s) | 1×VGA interface | |
| USB (s) | 4×USB 2.0 interfaces 2×USB 3.2 Gen 1 Type-A interfaces |
|
| LAN Port (s) | 1×Gigabit network interface RTL8111H Gigabit Ethernet Card |
|
| Supported Storage | 1x M.2 slot and 4 SATA 6Gb/s hard drive interfaces M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel) |
|
| Audio | Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels | |

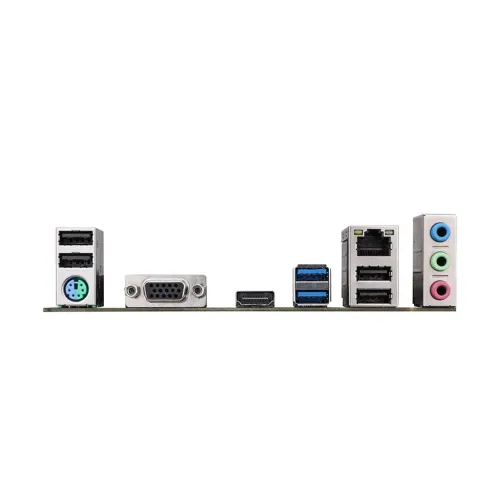

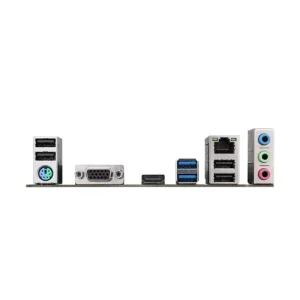

| Internal I/O Ports | Rear I/O: -4×USB 2.0 interfaces -2×USB 3.2 Gen 1 Type-A interfaces -1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution -1×VGA interface -1×PS/2 interface -1×Gigabit network interface -3×Audio interfaces (audio input/output/microphone) On board : -1×CPU fan pin -1×System fan pin -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×Debug light pin |
|
| Others | ||
| Special Features | Power Management: Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |
Description
Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard
The Colorful BATTLE-AX B450M-T M.2 V14 AM4 Motherboard is based on the AMD B450 chipset. It supports Ryzen series CPUs via the AM4 socket, making it an excellent choice for gaming, productivity, and everyday computing. This Colorful BATTLE-AX B450M-T M.2 V14 mATX motherboard features two DDR4 memory slots that support up to 64GB of memory and speeds ranging from 2133 MHz to an impressive 3600 MHz (OC). It also supports XMP profiles and dual-channel memory technologies, allowing customers more flexibility and performance control. The colorful BATTLE-AX B450M-T M.2 V14 Motherboard has one M.2 slot for PCIe 3.0 x4 NVMe SSDs and four SATA 6Gb/s ports, providing many fast storage options for current configurations. This Colorful Motherboard’s rear I/O layout is designed for convenience, with four USB 2.0 ports, two USB 3.2 Gen 1 Type-A ports, HDMI 2.0 with up to 4K 60Hz output, VGA, a Gigabit Ethernet port, PS/2 support, and three audio jacks powered by the Realtek ALC897 codec with 5.1-channel audio. Users will find many extension and connectivity options inside, as well as a colorful BATTLE-AX B450M-T M.2 V14 Motherboard with CPU and system fan pins, USB headers, a COM port pin, front panel audio, debug lights, and a clear CMOS jumper. The motherboard also has a PCIe 3.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for extra devices. The Colorful BATTLE-AX B450M-T M.2 V14 AM4 mATX Motherboard, with its 128M UEFI BIOS that supports different languages, provides easy tuning and dependable power management. Its features, including wake-on-LAN, USB wake-up, and system monitoring, make it a reliable choice for both home and office builds. This Colorful Motherboard’s mATX design, which measures 220mm x 195mm, makes it ideal for tiny yet powerful computers.
