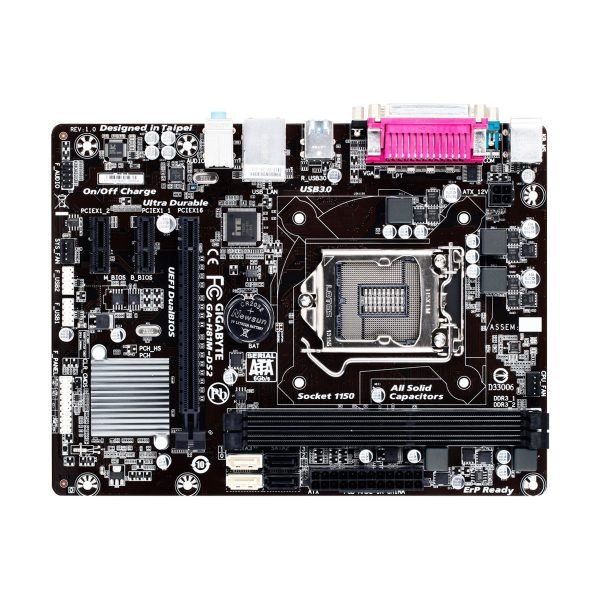

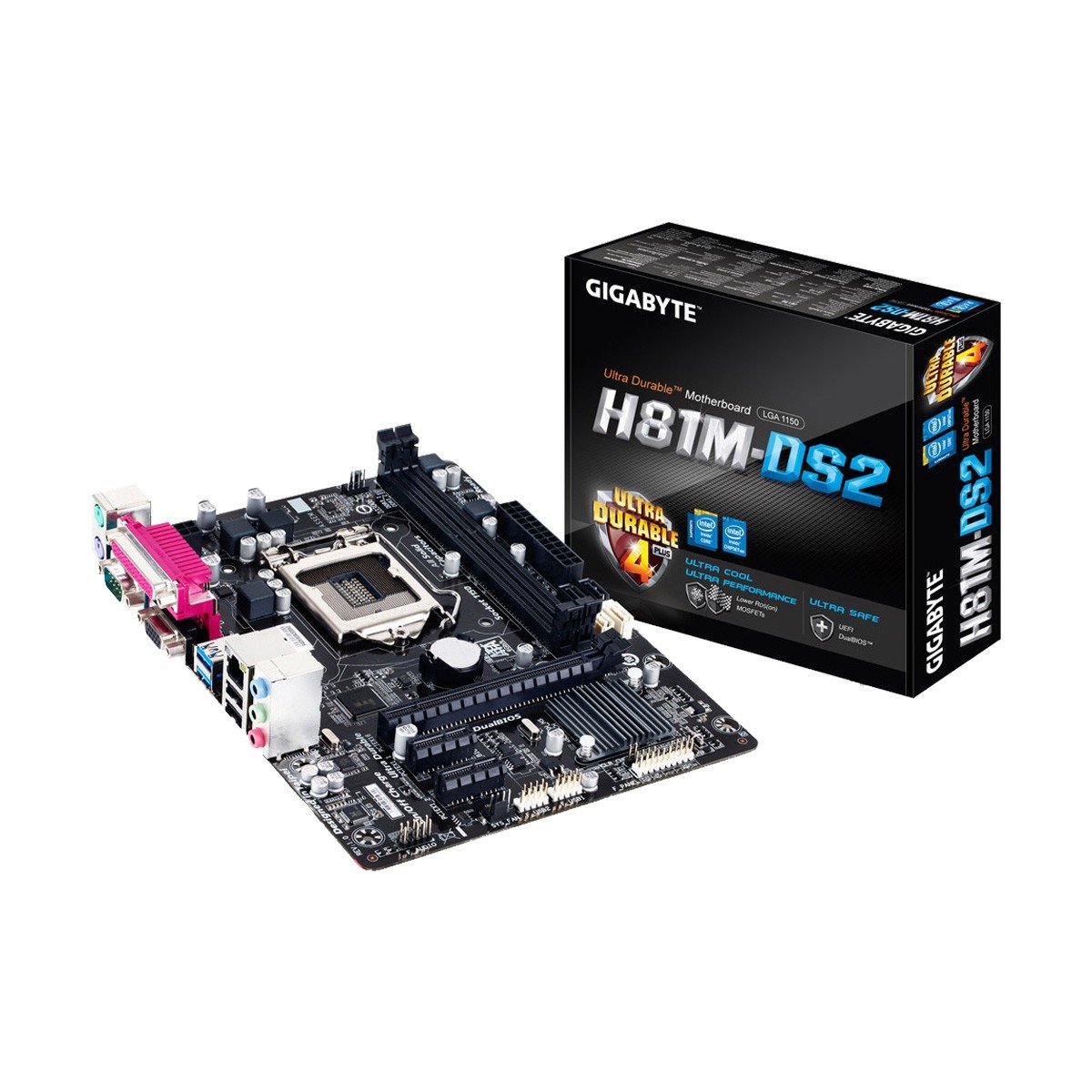

Gigabyte GA-H81M-DS2 Micro ATX Motherboard

৳ 8,800.00

Short Description

Model: GA-H81M-DS2
CPU: 4th Generation Intel Processors
Chipset: Intel H81 Express
2 x 1.5V DDR3
3 x PCI Express slot

Category: Gigabyte Tags: Aristo Computer, computer shop in kushtia, desktop motherboard aristo, desktop motherboard aristo computer, desktop motherboard kushtia, Gigabyte GA-H81M-DS2, Gigabyte GA-H81M-DS2 4th Gen.1150 Socket Mainboar, Gigabyte GA-H81M-DS2 price, Gigabyte GA-H81M-DS2 price in bd, Gigabyte mainboard, Gigabyte mainboard aristo, Gigabyte mainboard aristo computer kushtia, Gigabyte mainboard aristo computers, Gigabyte mainboard kushtia, Gigabyte mainboard manual, Gigabyte mainboard price in bd, Gigabyte mainboardd aristo kushtia, gigabyte motherboard, gigabyte motherboard aristo, gigabyte motherboard aristo computer kushtia, gigabyte motherboard aristo computers, gigabyte motherboard aristo kushtia, gigabyte motherboard kushtia, gigabyte motherboard manual, gigabyte motherboard price in bd, Gigabyte1150 Socket Mainboar, motherboard aristo computers, motherboard aristo kushtia, motherboard bangladesh, motherboard bd, motherboard price in Aristo, motherboard price in Aristo computer, motherboard price in bangladesh, motherboard price in bd, motherboard price in kushtia, pc motherboard, pc motherboard aristo, pc motherboard Aristo computer, pc motherboard kushtia, socket mainboard, Socket Mainboard Aristo, Socket Mainboard Aristo computer kushtia, Socket Mainboard aristo computers, Socket Mainboard Aristo kushti, socket mainboard aristo kushtia, socket mainboard in kushtia, Socket Mainboard kushtia, socket mainboard manual, socket mainboard price in bd

Description

Specification

Basic Information
Supported CPU	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU
Chipset	Intel® H81 Express
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.)
Memory
Type	Dual channel DDR3 memory architecture
Slots	2 x 1.5V DIMM
Supported Memory	Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	16 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920×1200
Max Shared Memory	1 GB
Connector & Ports
D-Sub (s)	1 x D-Sub
USB (s)	Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 Years
