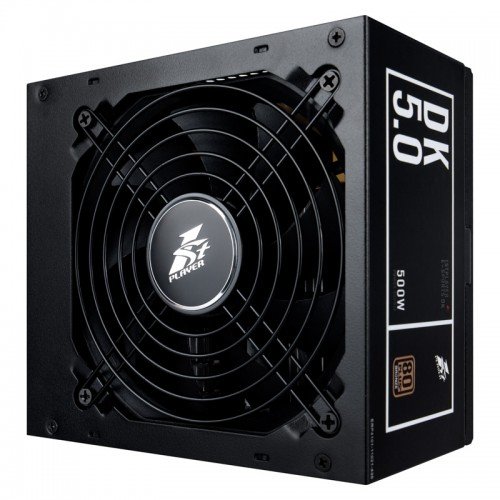

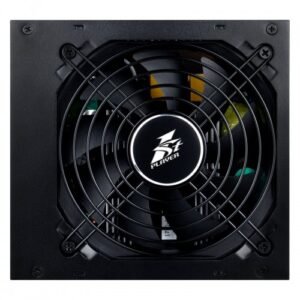

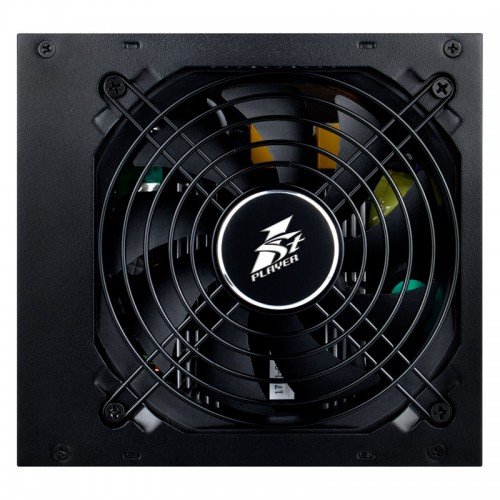

1STPLAYER DK 5.0 PS-500AX 500W 80 PLUS BRONZE Non-Modular ATX Power Supply

৳ 4,250.00

Short Description

  • MPN: PS-500AX
  • Model: DK 5.0
  • Double Forward + APFC
  • Fan Size: 120MM Hydraulic Bearing
  • Efficiency: 85% @ Typical Load
  • Japanese Main Capacitor
Category: Tags: , ,

Specification

Key Features
Efficiency (Approx.) 85% @ Typical Load
Certification 80 PLUS BRONZE
Fan Size 120MM Hydraulic Bearing
Others PFC: Active PFC
Protections: UVP, OVP, OPP, SCP, Lightning Protection
Operation Temperature: 0~40℃
MTBF: 100,000 hours
Circuit Structure: Double Forward
Regulatory: CE/FCC/C-Tick/ROHS/CCC/cTUVus/IEC/EAC
Input
Voltage 100-240 VAC
Frequency Range 50-60Hz
Current 10A MAX
Output
Modular Type Non Modular
Total Power 500W
DC Output 500W
Warranty Information
Manufacturing Warranty 5 years

Description

1STPLAYER DK 5.0 PS-500AX 500W 80 PLUS BRONZE Non-Modular ATX Power Supply

The 1STPLAYER DK 5.0 PS-500AX is armed with an 80 PLUS bronze certificate, Japanese TK main capacitors, single +12V rail design, and 1ST optimized rail structure, so as to realize a more powerful performance. It is a perfect combination of cooling and silence with a 12CM Hydraulic Bearing fan. Single +12V output, the output of +12V loading can be rated as 90% of the total power. It complies with ErP LOT 6, Standby power low as 0.5W. DK 5.0 delivers a reliable life expectancy and quality assurance. It has 24PIN*1, P8(4+4)*1, P8(6+2)+P8(6+2)*1, SATA+SATA+SATA+IDE*2 and Black Flat DC Cables. The 1STPLAYER DK 5.0 comes with 5 years of warranty.
