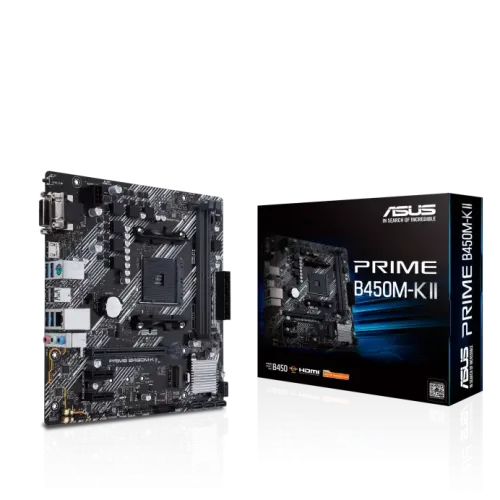

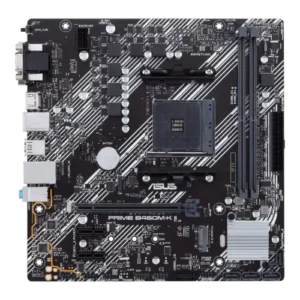

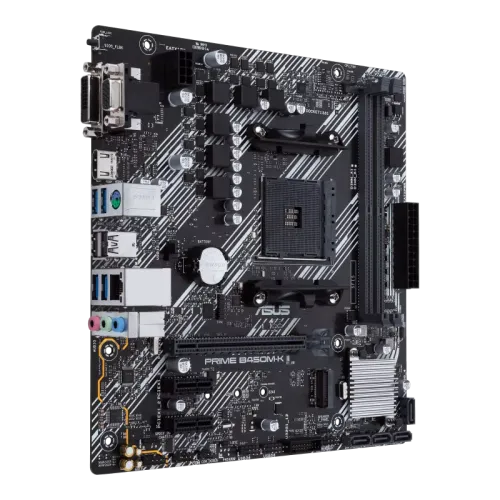

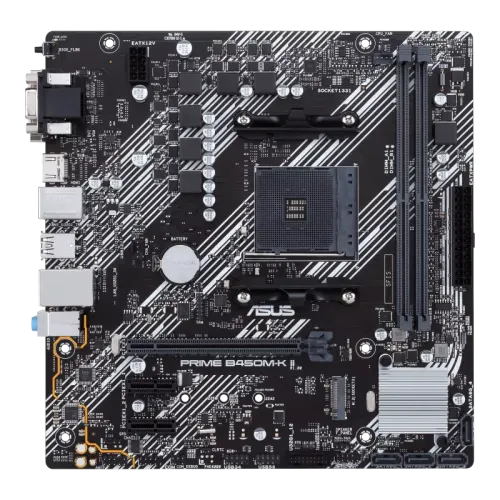

Asus PRIME B450M-K II DDR4 AMD AM4 micro ATX Motherboard

৳ 9,300.00

Short Description

  • Model: PRIME B450M-K II
  • CPU: AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series
  • Supported RAM: 2 x DDR4, Max. 64GB
  • Graphics Output: 1x D-Sub, 1x DVI-D, 1x HDMI 2.0b
  • Features: 5X Protection III
Category: Tags: , , ,

Specification

Basic Information
Supported CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Chipset AMD B450
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Expansion Slots
PCI 3rd/2nd/1st Gen AMD Ryzen Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD Athlon with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (x4 mode)
AMD B450 chipset
2 x PCIe 2.0 x1
M.2 Socket Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode)
Athlon with Radeon Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Memory
Type Dual Channel DDR4 Memory Technology
Slots 2 x DIMM
Supported Memory 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ 3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.) / 2666/2400/2133 MHz Un-buffered Memory
Maximum Memory 64GB
Graphics
Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
1 x D-Sub
1 x DVI-D
1 x HDMI 2.0b

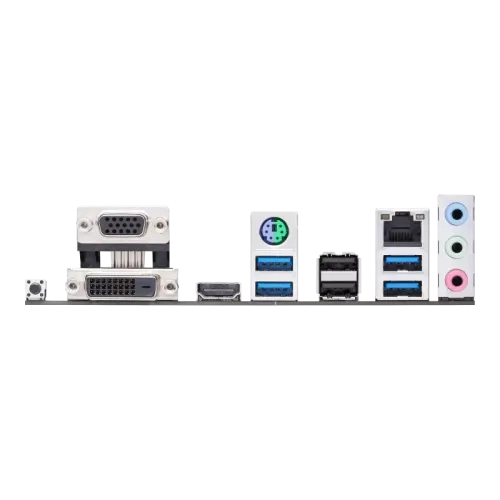

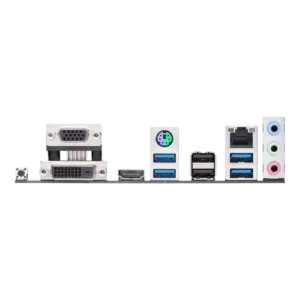

Connector & Ports
HDMI 1 x HDMI 2.0b
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
USB (s) Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
LAN Port (s) Realtek RTL8111H
ASUS LANGuard
Supported Storage Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode)
Athlon with Radeon Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
AMD B450 chipset :
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Audio Realtek ALC887/897 7.1-Channel High Definition Audio CODEC
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– LED-illuminated design
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
Choose the chassis with an HD audio module in the front panel to support 8-channel audio output.
Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
TPM (Trusted Platform Module ) 1 x SPI TPM header
Warranty Information
Manufacturing Warranty 03 years

Description

Asus Prime B450M-A II AM4 Micro-ATX AMD Motherboard

The ASUS Prime B450M-A II AM4 Micro-ATX AMD Motherboard has USB 3.2 Gen 1 Type-A, BIOS FlashBack, HDMI/DVI-D/D-Sub, SATA 6 Gbps, and 1 Gb Ethernet. It has a PCH heatsink, Fan Xpert, and comprehensive cooling. This motherboard supports USB 3.2 Gen 1 Type-A, M.2, Ultrafast connection, and 1 Gb Ethernet. Additionally, it includes many hardware protections and 5X Protection III for complete system security. It has audio trace pathways and PCIe slot lighting control. It offers the sturdy framework required for your initial construction as well as the adaptability to expand as your goals do. The best features of AMD Ryzen CPUs have been combined with fundamental ASUS design and engineering so that you may make use of technologies that are unmatched in the industry, such as automatic system tuning, thorough cooling management, and immersive onboard audio. Building with a motherboard from the ASUS Prime B450M II Series is simple, quick, and affordable. The ASUS Prime series is built on a foundation of thorough controls. The Prime B450M II motherboard has adaptable features that let you fine-tune every area of your system. This increases productivity by letting you adjust performance parameters to exactly match your working style.
