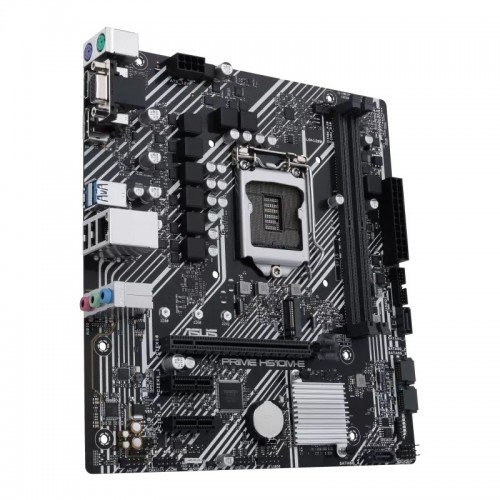

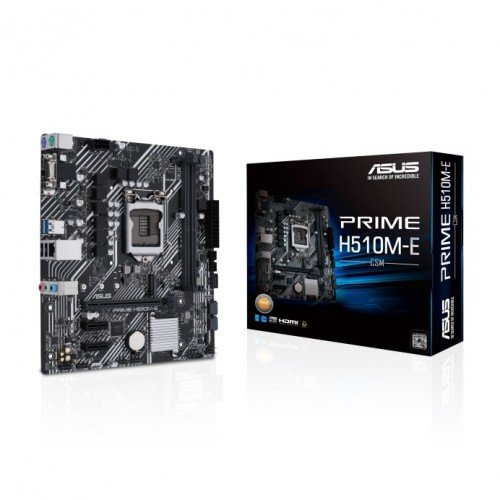

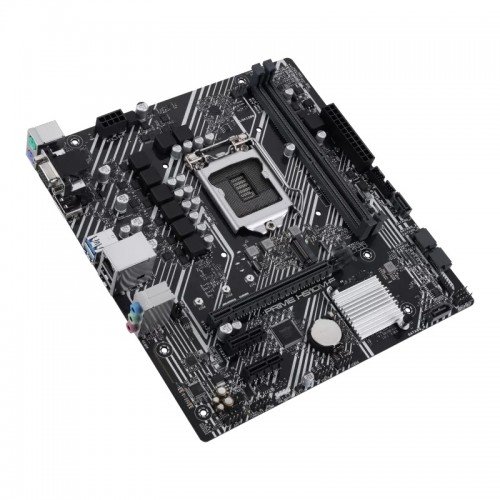

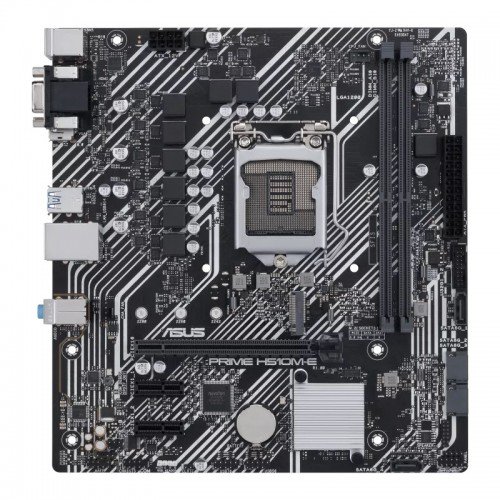

Asus Prime H510M-E/CSM Intel 11th and 10th Gen Micro ATX Motherboard

৳ 9,400.00

Key Features

  • Model: Prime H510M-E/CSM
  • Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors
  • PCIe 4.0, 32Gbps M.2 slot
  • PCH heatsink and Fan Xpert
  • 5X Protection III

Out of stock

Category: Tags: , , , , ,

Specification

Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset H510
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
22.6cm x 21.1cm
Expansion Slots
PCI Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
– Intel 11th Gen processors support PCIe 4.0 x16
– Intel 10th Gen processors support PCIe 3.0 x16Intel H510 Chipset
2 x PCIe 3.0 x1 slots
Memory
Type DDR4
Supported Memory DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Graphics
Graphics 1 x D-Sub
* Graphics specifications may vary between CPU types.** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.*** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.Expansion Slots Intel 11th & 10th Gen Processors

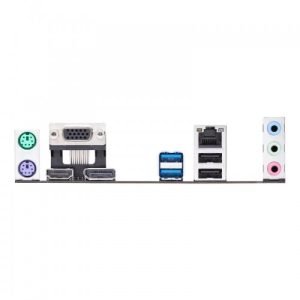

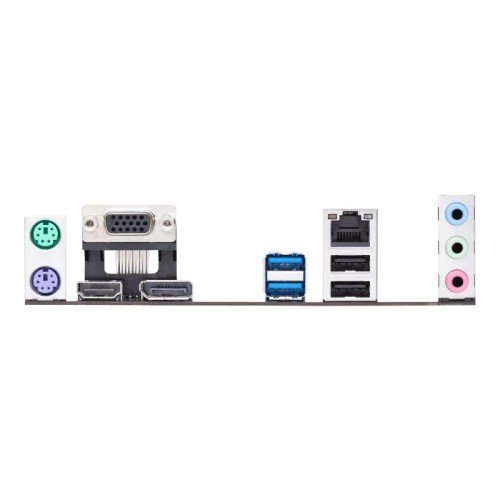

Connector & Ports
HDMI 1 x HDMI 2.0
Display Port (s) 1 x DisplayPort 1.4
D-Sub (s) 1 x D-Sub
USB (s) Rear USB:Total 4 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel I219-V 1Gb Ethernet
Supported Storage Intel H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan headerPower related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connectorStorage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s portsUSB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty 3 Years
Others
Special Features ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
ASUS Thermal Solution
– Aluminum heatsink design
ASUS Lighting Control
– RGB header
Bundled Software ASUS Exclusive Software
Armoury Crate
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
– EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
