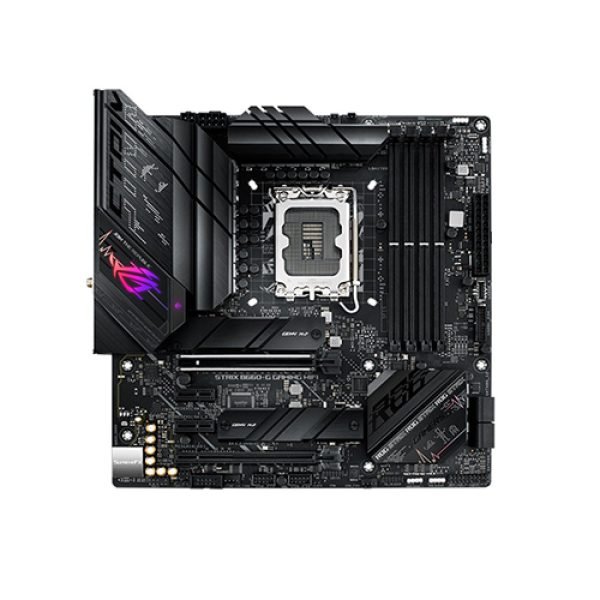

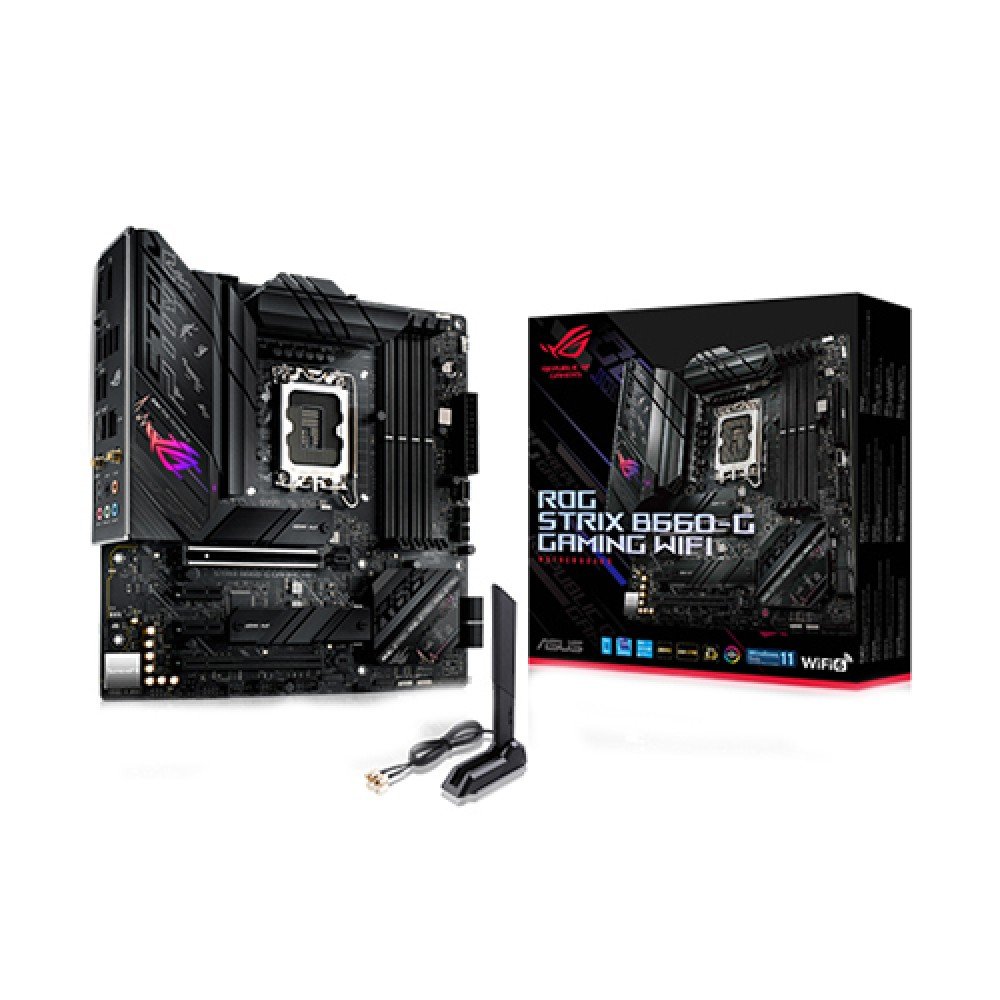

ASUS ROG STRIX B660-G GAMING WIFI Intel 12th Gen MATX Motherboard

৳ 24,700.00

Key Features
  • High-Performance Networking
  • Optimal Power Solution
  • Optimized Thermal Design
  • High-Performance Networking

Out of stock

Category: Tags: , ,

Specifications

Motherboard
Supported CPU Intel Socket LGA1700 For 12th Gen Intel Core™, Pentium Gold And Celeron Processors
Supports Intel Turbo Boost Technology 2.0 And Intel Turbo Boost Max Technology 3.0
Chipset Intel B660 Chipset
Memory 4 X DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-Buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Graphics 1 X DisplayPort
1 X HDMI Port
Slots Intel® 12th Gen Processors
1 X PCIe 5.0 X16 Slot(S)
Intel® B660 Chipset
1 X PCIe 3.0 X16 Slot (Supports X4 Mode)
2x PCIe 4.0 X1 Slots
Supported Storage Total Supports 2 X M.2 Slots And 4 X SATA 6Gb/S Ports
Intel 12th Gen Processors
M.2_1 Slot (Key M), Type 2242/2260/2280
– Intel 12th Gen Processors Support PCIe 4.0 X4 Mode.
Intel B660 Chipset
M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4)
4 X SATA 6Gb/S Ports
LAN 1 X Intel 2.5Gb Ethernet ASUS LANGuard
Audio “ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
– Impedance Sense For Front And Rear Headphone Outputs
– Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking
– High Quality 120 DB SNR Stereo Playback Output And 113 DB SNR Recording Input
– Supports Up To 32-Bit/192 KHz Playback”

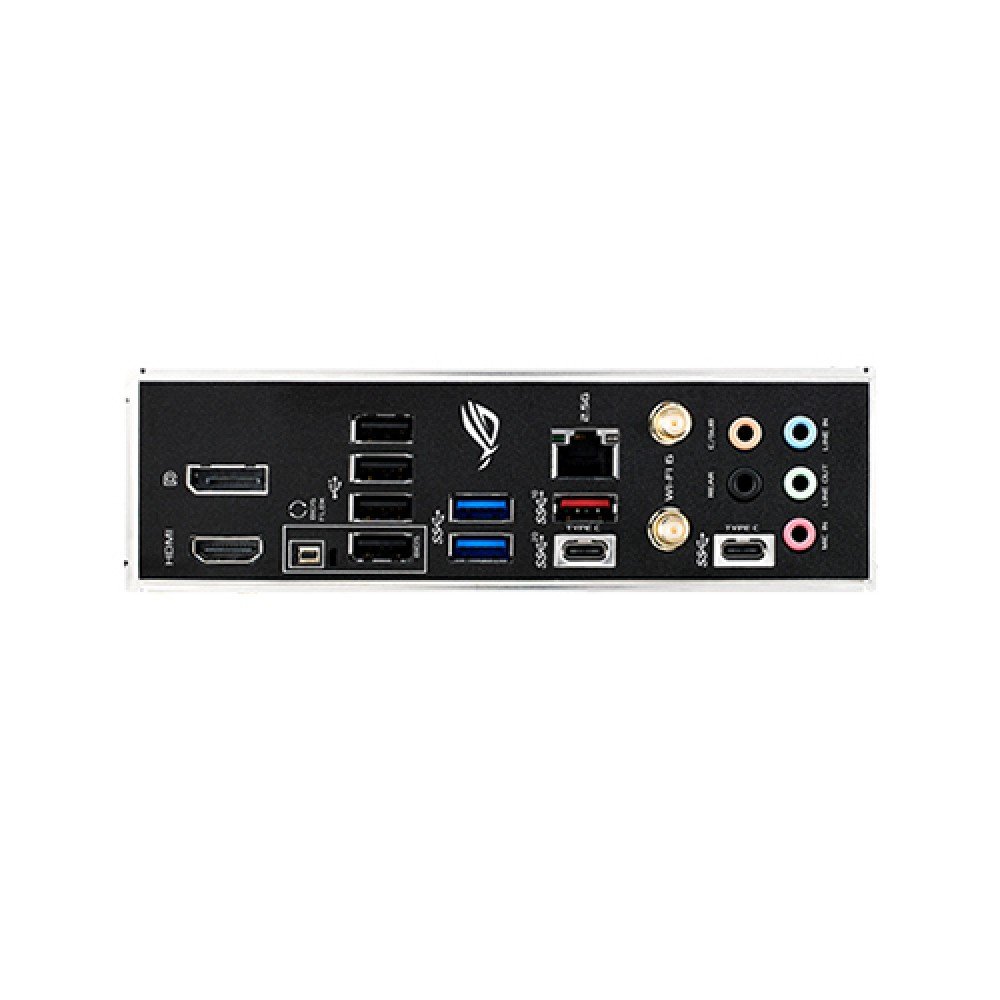

USB Port Rear USB (Total 9 Ports)
1 X USB 3.2 Gen 2×2 Port(S) (1 X USB Type-C)
1 X USB 3.2 Gen 2 Port(S) (1 X Type-A)
3x USB 3.2 Gen 1 Port(S) (2 X Type-A, 1 X USB Type-C)
4 X USB 2.0 Port(S) (4 X Type-A)
Front USB (Total 7 Ports)
1 X USB 3.2 Gen 2 Connector (Supports USB Type-C)
1 X USB 3.2 Gen 1 Header(S) Support(S) Additional 2 USB 3.2 Gen 1 Ports
2 X USB 2.0 Header(S) Support(S) Additional 4 USB 2.0 Ports
Internal I/O Ports Fan And Cooling Related
1 X 4-Pin CPU Fan Header(S)
1 X 4-Pin AIO Pump Header(S)
2 X 4-Pin Chassis Fan Header(S)Power Related
1 X 24-Pin Main Power Connector
1 X 8-Pin +12V Power ConnectorStorage Related
2 X M.2 Slots (Key M)
4 X SATA 6Gb/S Ports

USB
1 X USB 3.2 Gen 2 Connector (Support(S) USB Type-C®)
1 X USB 3.2 Gen 1 Header(S) Support(S) Additional 2 USB 3.2 Gen 1 Ports
2 X USB 2.0 Header(S) Support(S) Additional 4 USB 2.0 Ports

Miscellaneous
3 X Addressable Gen 2 Header(S)
1 X AURA RGB Header(S)
1 X Clear CMOS Header
1 X COM Port Header
1 X Front Panel Audio Header (AAFP)
1 X S/PDIF Out Header
1 X SPI TPM Header (14-1pin)
1 X 20-3 Pin System Panel Header With Chassis Intrude Function
1 X Thermal Sensor Header
1 X Thunderbolt™ Header
WiFi “Wi-Fi 6
2×2 Wi-Fi 6 (802.11 A/B/G/N/Ac/Ax)
Supports 2.4/5GHz Frequency Band
Bluetooth V5.2″
Form Factor MATX Form Factor
9.6 Inch X 9.6 Inch ( 24.4 Cm X 24.4 Cm )
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
HDMI Support 4K@60Hz As Specified In HDMI 2.1.
Others ASUS EZ DIY
– BIOS FlashBack™ Button
– BIOS FlashBack™ LED
– CPU Socket Lever Protector
– ProCool
– Pre-Mounted I/O Shield
– SafeSlot
– SafeDIMM
AURA Sync
– AURA RGB Header(S)
– Addressable Gen 2 Header(S)
Warranty 3 Years
