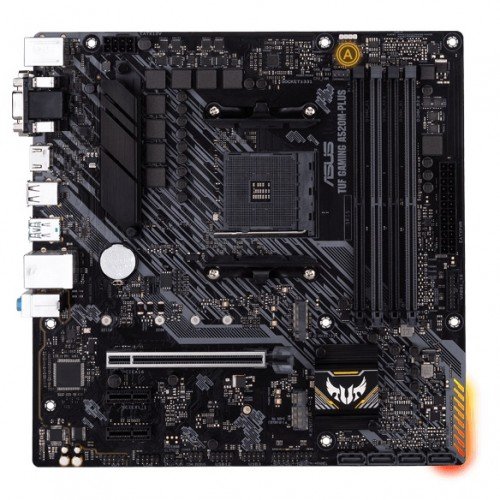

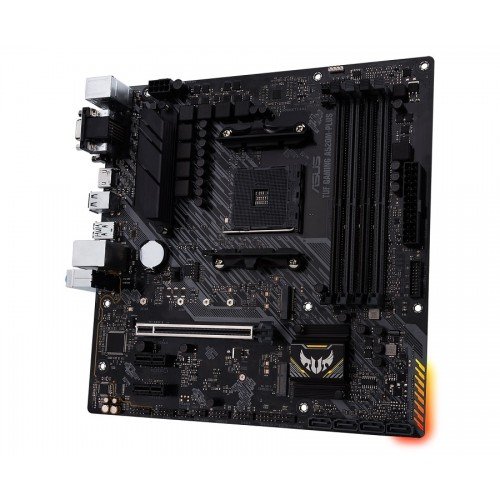

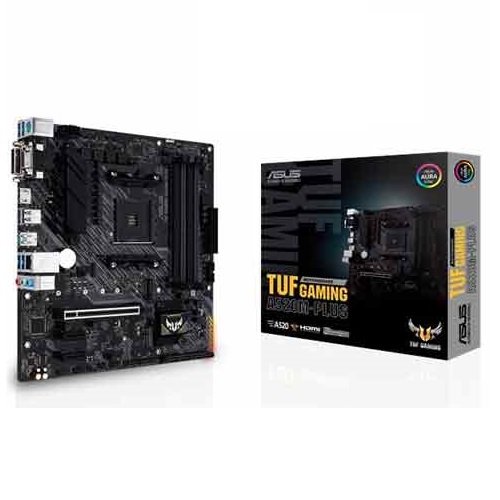

Asus TUF Gaming A520M-Plus Micro ATX AM4 Motherboard
৳ 12,500.00 ৳ 11,900.00
Key Features
- Model: Asus TUF Gaming A520M-Plus
- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- Made for online gaming
- Comprehensive cooling
- Aura Sync RGB Lighting
Out of stock
Specification
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD A520 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|
| Expansion Slots | ||
| PCI | 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
|
| M.2 Socket | 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support | |
| Memory | ||
| Type | Dual Channel Memory Architecture | |
| Slots | 4 x DIMM slots | |
| Supported Memory | 3rd Gen AMD Ryzen Processors 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen with Radeon Graphics Processors 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory ECC Memory (ECC mode) support varies by CPU |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics in the 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| D-Sub (s) | 1 x D-Sub | |
| DVI-D (s) | 1 x DVI-D | |

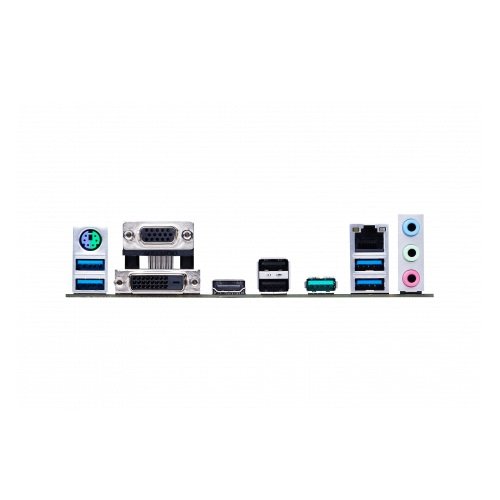

| USB (s) | Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 port(s)(1 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 5 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 3 x USB 2.0 port(s)(3 x Type-A) |
|
| LAN Port (s) | Realtek L8200A 1Gb Ethernet TUF LANGuard |
|
| Supported Storage | Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD A520 Chipset : 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Audio | Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : – Audio Shielding – Dedicated audio PCB layers – Premium Japanese audio capacitors |
|
| Internal I/O Ports | 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Aura RGB Strip Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header | |
| Others | ||
| Special Features | ASUS Exclusive Software Armoury Crate – Aura Creator – Aura Sync AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update – PC Cleaner – System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeASUS TUF PROTECTION – ASUS DIGI+ VRM – ASUS ESD Guards – TUF LANGuard – ASUS Overvoltage Protection – ASUS SafeSlot Core+ – ASUS Stainless-Steel Back I/O ASUS Q-Design – ASUS Q-DIMM – ASUS Q-Slot ASUS Thermal Solution – Aluminum heatsink design |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
Description
Asus TUF Gaming A520M-Plus Micro ATX AM4 Motherboard
TUF Gaming A520M-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus is the perfect foundation for your next high-core-count battle rig. Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. Proprietary capacitors provide up to 20% greater temperature tolerance and a 5X-longer lifespan. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming A520M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Experience ultra-fast gaming with the ASUS-exclusive Realtek L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface and reduces network lag.
