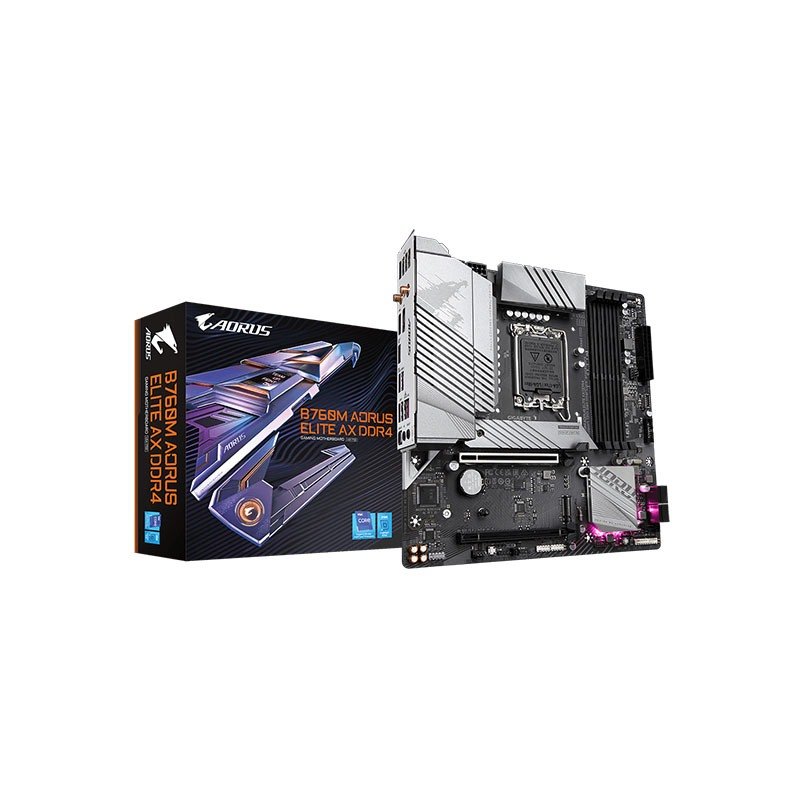

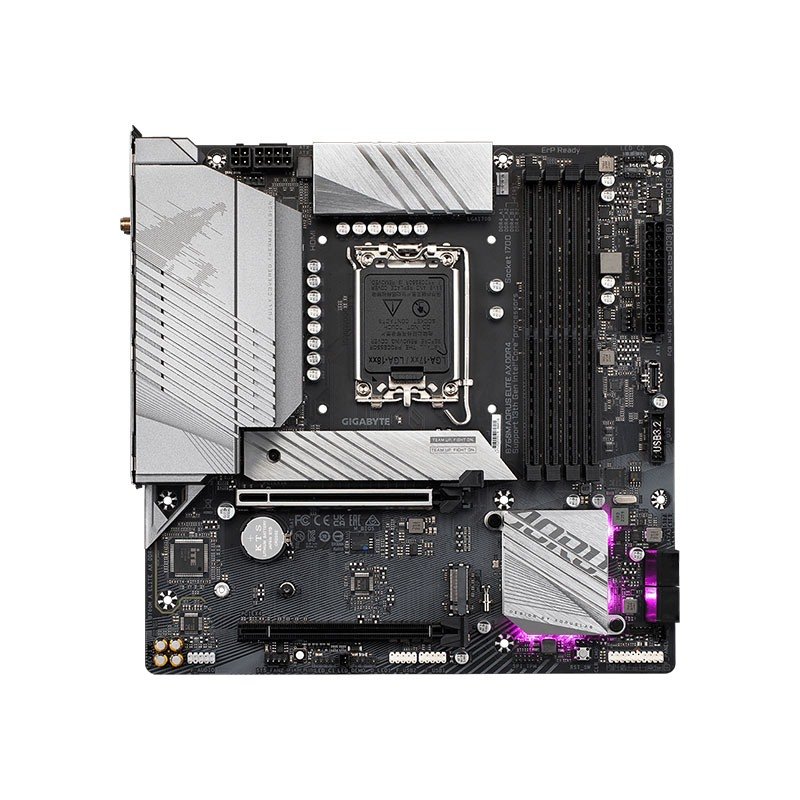

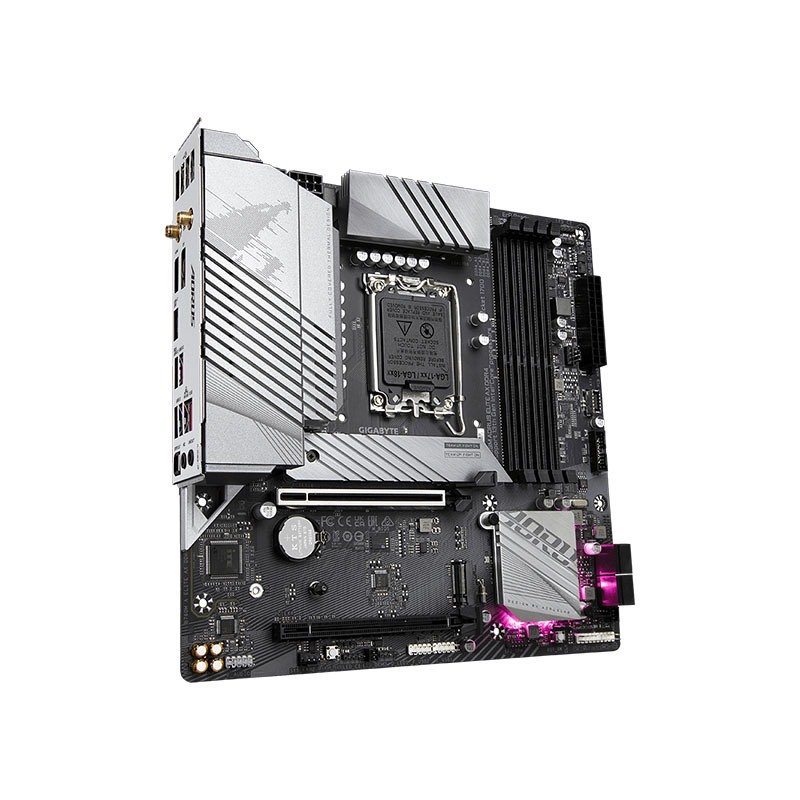

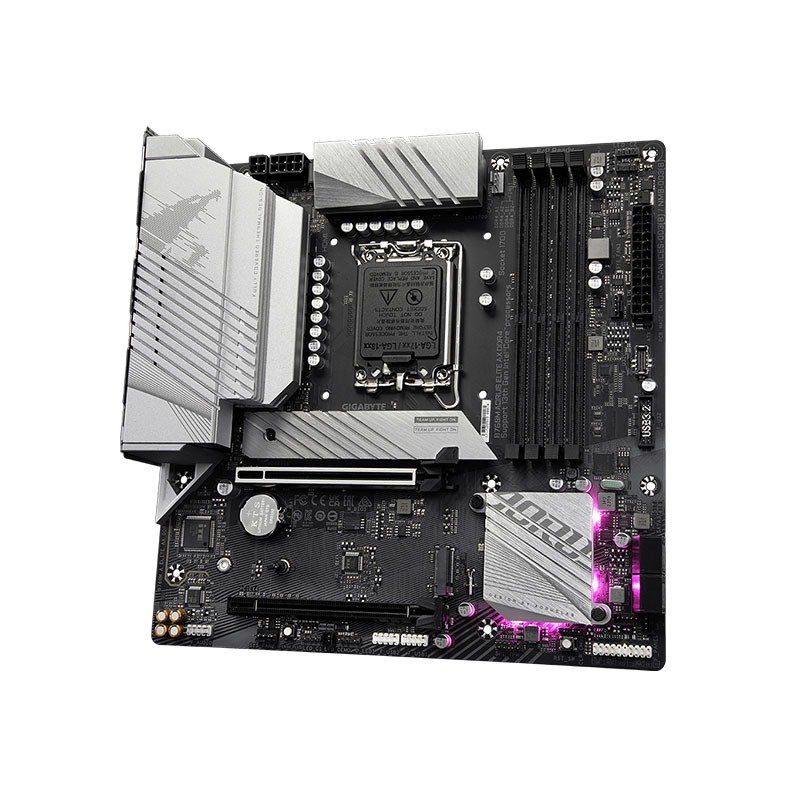

GIGABYTE B760M AORUS ELITE AX DDR4 13TH GEN MICRO ATX MOTHERBOARD
৳ 25,000.00 ৳ 23,000.00
Key Features
- Fast Networks: 2.5GbE LAN & Intel Wi-Fi 6E 802.11ax
- Unparalleled Performance: Twin 12+1+1 Phases Digital VRM Solution
- Dual Channel DDR4: 4DIMMs with XMP Memory Module Support
- Next Generation Storage: 2PCIe 4.0 x4 M.2 Connectors
Out of stock
| Specification | |
| Supported CPU | LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors* L3 Cache Varies With The CPU |
| Mainboard | |
| Chipset | Intel® B760 Express Chipset |
| Memory | |
| Memory | Support For DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/S Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| Storage | |
| Supported Storage | CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices |
| Graphics | |
| Multi-GPU | Support For AMD CrossFireX™ Technology |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096×2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096×2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 |
| Audio & Microphone | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out |
| Networking & Connectivity | |
| LAN | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | Intel® Wi-Fi 6E AX211 WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate |
| Bluetooth | 5.3 |
| Ports | |
| Slots | CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) Support For AMD CrossFireX™ Technology |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 3 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Q-Flash Plus Button 1 X Reset Button 1 X Reset Jumper 1 X Clear CMOS Jumper |
| External I/O Ports | 2 X SMA Antenna Connectors (2T2R) 1 X USB Type-C® Port, With USB 3.2 Gen 2×2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 3 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 1 X HDMI Port 1 X DisplayPort 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks |
| USB | Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2×2 Support 1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 1 X USB 3.2 Gen 1 Port On The Back Panel 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Chipset+USB 3.2 Gen 1 Hub: 4 X USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) Chipset+USB 2.0 Hub: 4 X USB 2.0/1.1 Ports On The Back Panel |
| Special Features | |
| Special Features | Support For GIGABYTE Control Center (GCC) * Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. Support For Q-Flash Support For Q-Flash Plus |
| Software Features | Bundled Software Norton® Internet Security (OEM Version) LAN Bandwidth Management Software |
| Technical Info | |
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5. |
| Physical Specification | |
| Form Factor | Micro ATX |
| Dimension | 24.4cm X 24.4cm |
| Others | |
| Other Features | I/O Controller ITE® I/O Controller Chip H/W Monitoring Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control |
| Warranty Information | |
| Warranty | 3 Years Warranty |
GIGABYTE B760M AORUS ELITE AX DDR4 13TH GEN MICRO ATX MOTHERBOARD
The GIGABYTE B760M AORUS ELITE AX DDR4 Motherboard is a high-performance motherboard that supports Intel® CoreTM, Pentium® Gold, and Celeron® Processors from the 13th and 12th Generations. This motherboard can give a smooth performance for demanding applications thanks to DDR4 memory support and the Intel® B760 Express Chipset. This motherboard’s inbuilt graphics processor supports resolutions of up to 4096×2304 @ 60 Hz and has HDMI and DisplayPort outputs. The Realtek® Audio CODEC supports high-definition audio with 2/4/5.1/7.1-channel capability, while the Realtek® 2.5GbE LAN chip and Intel® Wi-Fi 6E AX211 module offer quick and dependable networking choices. This motherboard also has four SATA 6Gb/s connections, one M.2 connector (Socket 3, M key), and one USB Type-C® port on the rear panel that supports USB 3.2 Gen 2×2. This motherboard is an excellent choice for a powerful and versatile system since it supports AMD CrossFireXTM technology and has 4 USB 3.2 Gen 1 connections. Bangladesh’s top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support
