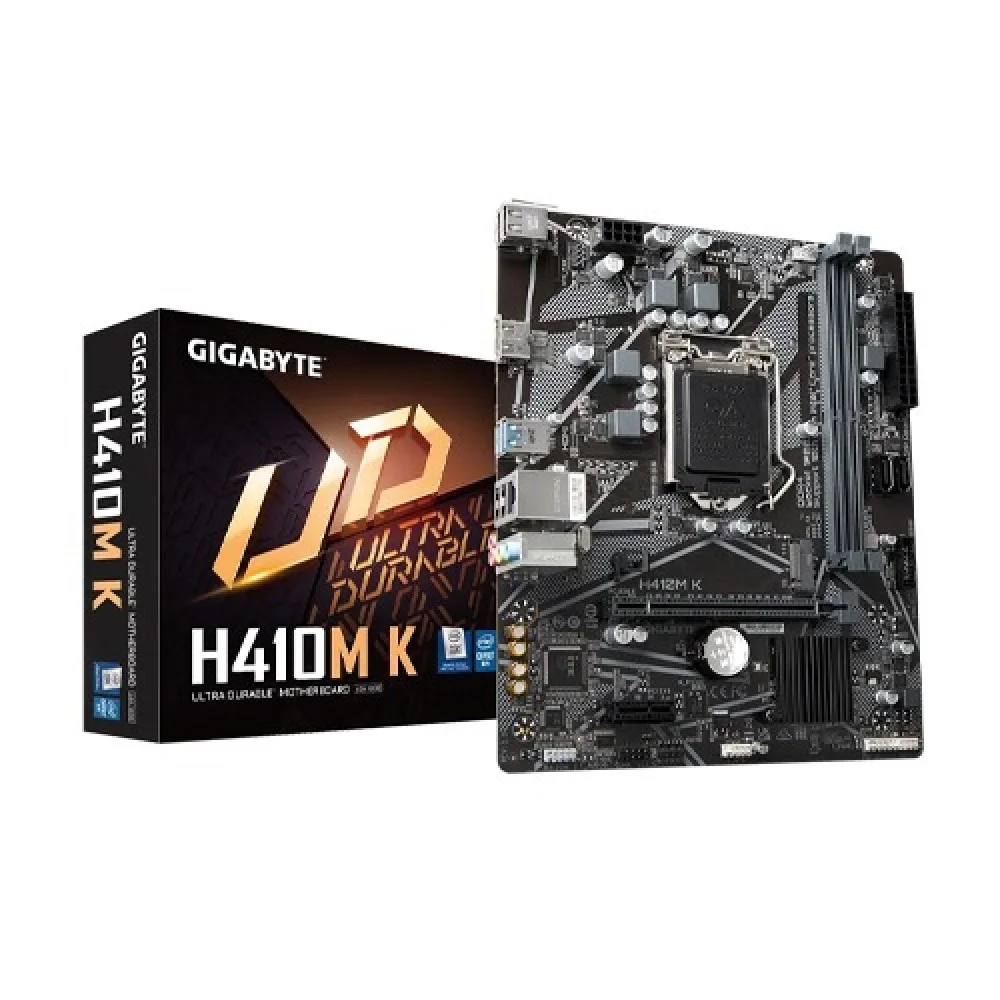

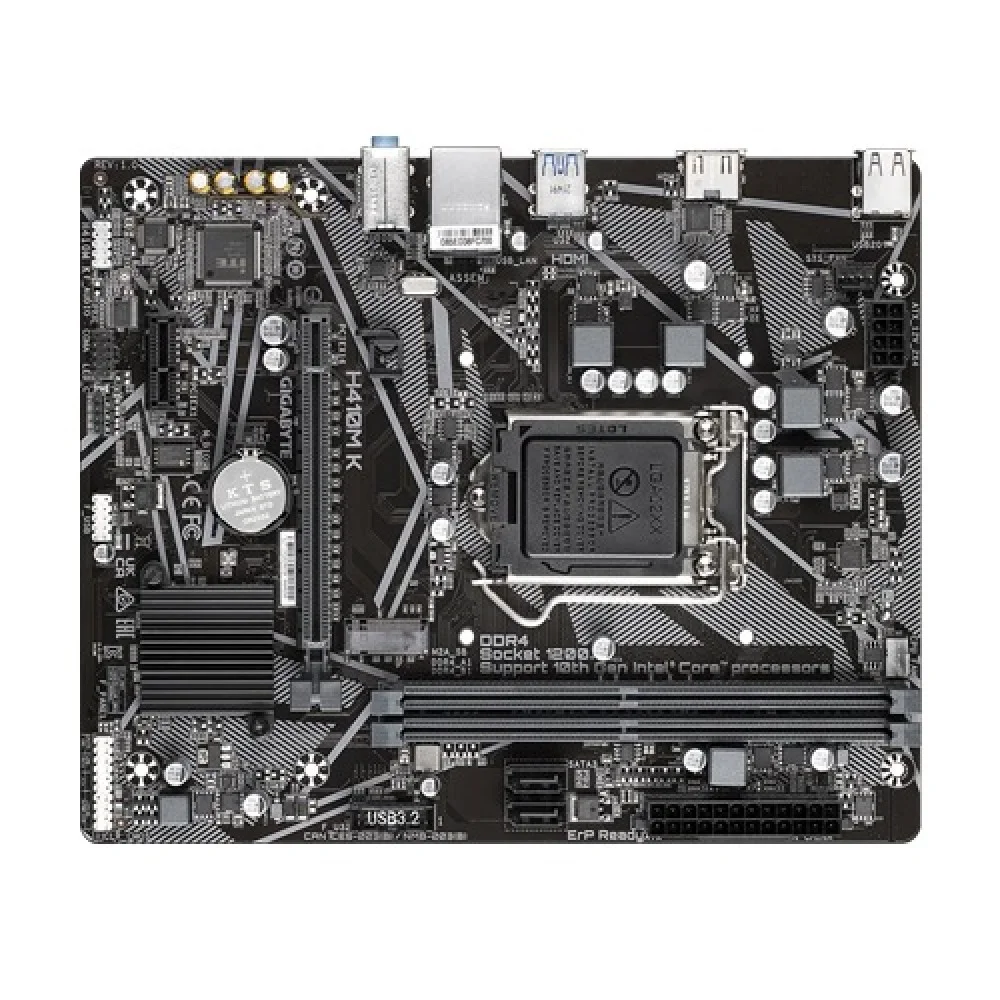

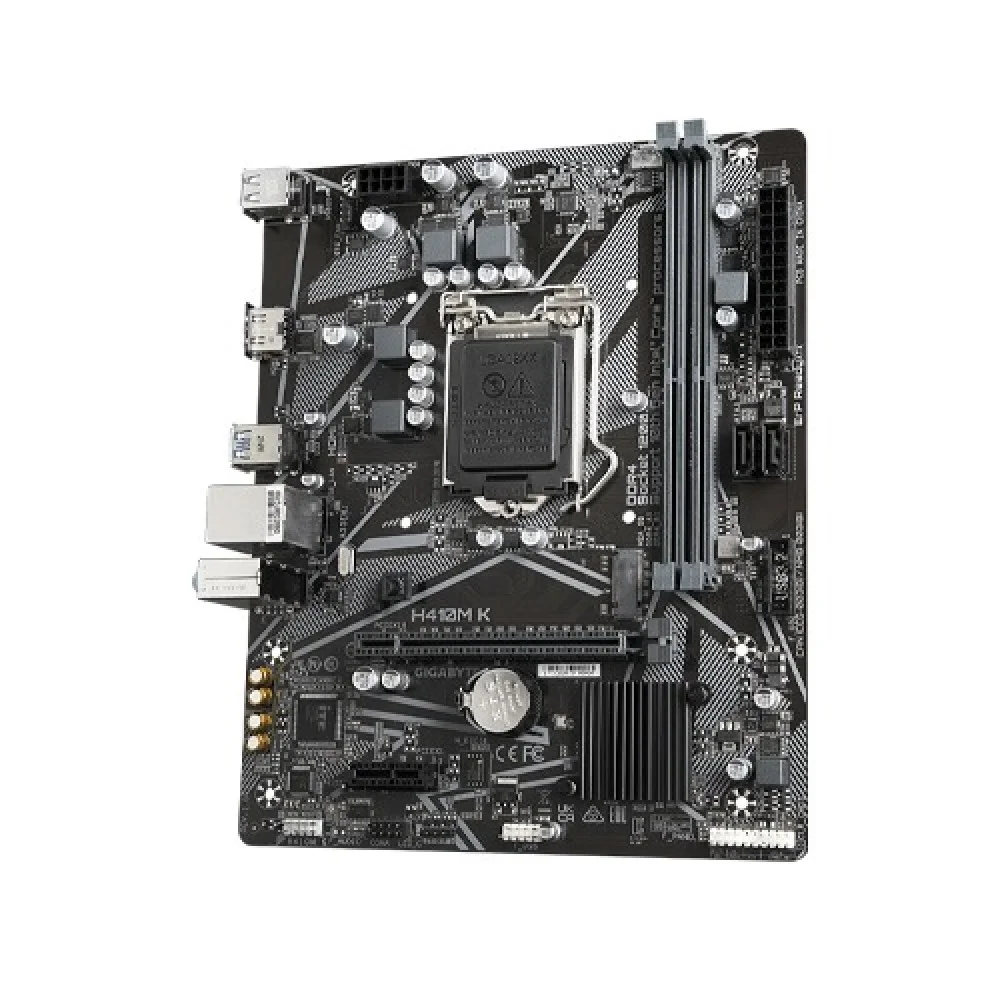

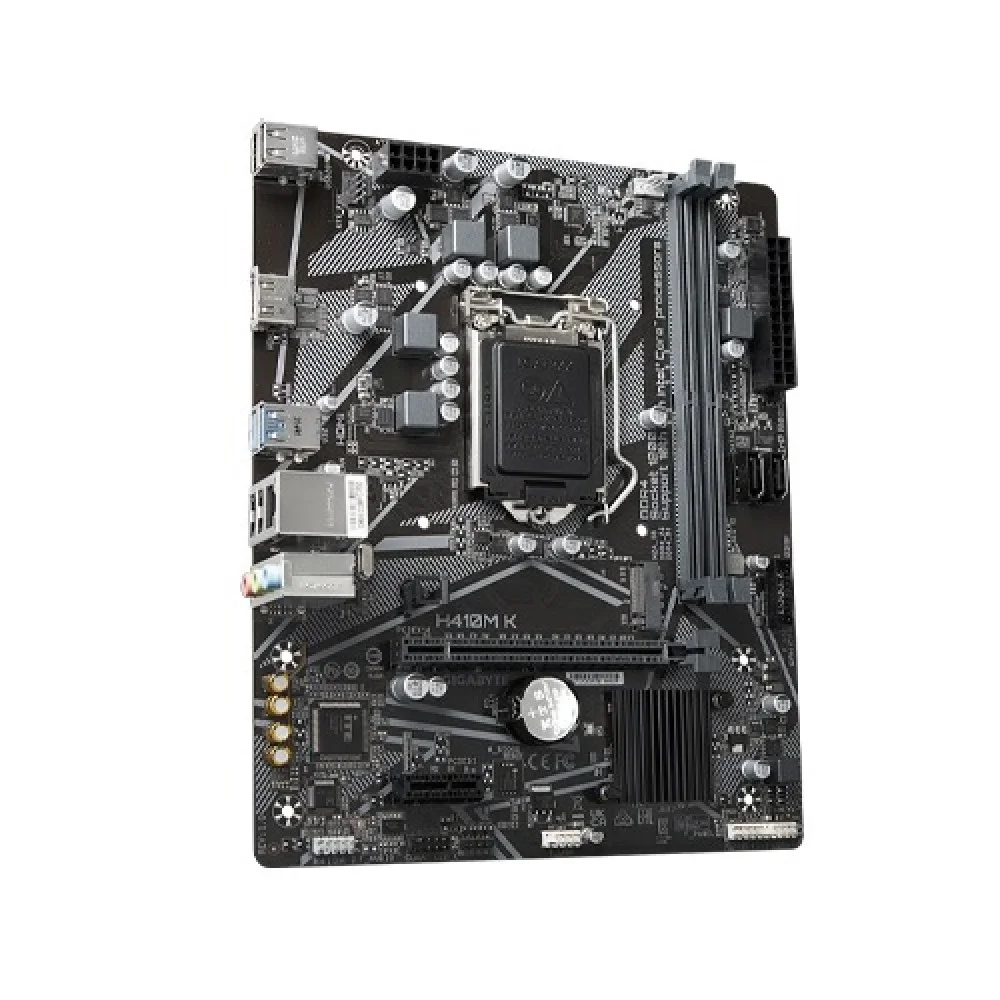

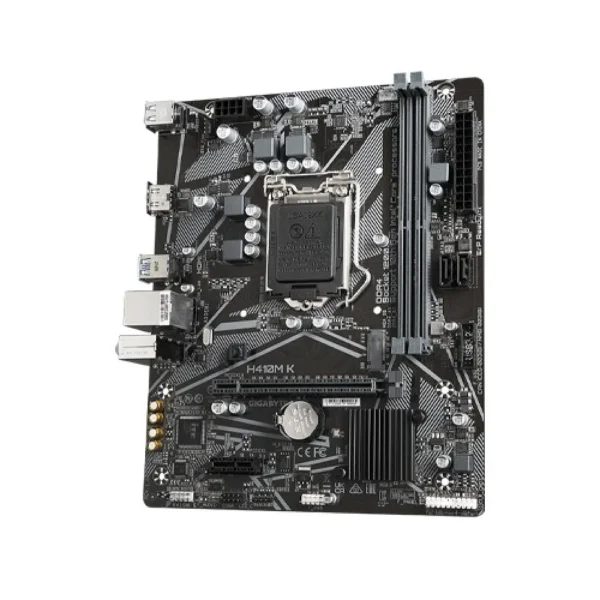

Gigabyte H410M K DDR4 Intel Motherboard

৳ 8,600.00

Short Description

  • Supports 10th Gen Intel® Coreâ„¢ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • 8-Channel HD Audio with High Quality Audio Capacitors
Category: Tag:
Main Features
Chipset Intel® H470 Express Chipset
Generel information
Back Panel Connectors 1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
BIOS FEATURES 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software Norton® Internet Security (OEM version)
LAN bandwidth management software
CPU 1. LGA1200 package: Support 10th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
2. L3 cache varies with CPU (Please refer “CPU Support List” for more information.)
Expansion Slots CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
I/O Controller iTE® I/O Controller Chip
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Memory 10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Operating System Support for Windows 11 64-bit
Support for Windows 10 64-bit
Storage Interface Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 5 Intel® Optane™ Memory Ready
USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Connector & ports
Audio Jack Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Warranty Information
Warranty Details 3 – Years

Gigabyte H410M K  DDR4 Intel Motherboard

The Gigabyte H410M K DDR4 Intel Motherboard is a versatile and reliable choice for users looking to build a powerful yet budget-friendly system. Compatible with Intel’s 10th Gen processors, it supports the LGA1200 socket, making it suitable for Intel Core i9, i7, i5, and i3 processors, as well as Pentium and Celeron models. This motherboard uses the Intel H470 chipset, which provides stable performance, and features dual DDR4 DIMM slots for up to 64GB of memory. The H410M K supports various RAM speeds, depending on the processor, with speeds up to 2933 MHz on high-end CPUs, ensuring efficient multitasking and smooth performance in most applications.The motherboard includes a PCI Express x16 slot for graphics card support, allowing users to add a dedicated GPU if desired. It also features an M.2 slot for fast SSD storage along with two SATA 6Gb/s connectors, supporting various RAID configurations to enhance storage speed and redundancy. For integrated graphics, it has an HDMI port capable of outputting 4K resolution at 30Hz, providing an excellent visual experience when connected to compatible displays.Network connectivity is robust, with a Realtek GbE LAN chip that supports up to 1 Gbps speeds. Additionally, the motherboard includes RGB Fusion compatibility, allowing users to personalize their builds with customizable lighting. With Realtek’s high-definition audio codec and multi-channel support, it also provides an immersive audio experience. The board is packed with Gigabyte’s unique features such as Q-Flash, APP Center, and Xpress Install, making BIOS updates and system setup straightforward. Overall, the H410M K is a well-rounded motherboard option for users needing a stable platform for everyday tasks or light gaming at an accessible price.

Features

  • Processor Compatibility: Supports 10th Gen Intel Core, Pentium, and Celeron CPUs, making it flexible for various builds.
  • Memory Support: Equipped with two DDR4 DIMM slots supporting up to 64GB at speeds up to 2933 MHz, ideal for smooth multitasking.
  • Expansion Slots: Features a PCIe x16 slot for graphics and a PCIe x1 slot for additional expansion.
  • Storage Options: Supports an M.2 SSD slot for fast data transfer, plus two SATA 6Gb/s connectors.
  • Audio and Connectivity: Realtek high-definition audio and Gigabit LAN ensure clear sound and fast network access.
  • Display Support: HDMI output supports up to 4K resolution, providing high-quality visuals.
  • Form Factor: Compact Micro-ATX, great for space-conscious setups.
