Specification
| SKU | KF560C40BWA-16 |
| Brand | Kingston |
| Memory Capacity | 16GB |
| Module Quantity | 1 Module |
| Speed (Data Rate) | 6000MT/s (PC5-48000) |
| Speed (Clock Rate) | 3000Mhz |
| Module Type | DIMM |
| Error Check | Non-ECC |
| Model/Series/Type | Fury Beast |
| CAS Latency | CL40 |
| Form Factor | DDR5 |
| Rank | 1R (Single Rank) |
| Warranty | Lifetime |
| Pins | 288 Pin |
| RGB Lighting | Yes |
| DRAM Density | 16Gbit |
| Memory Voltage | 1.35v |
| Memory Depth | 2G |
| Product Condition | New |
| Product Type/Family | RAM |
| Packaging Type | Retail |
| Data Width | X64 |
| Chip Organization | x8 |
| Memory Profiling | XMP |
| Heat Spreader | Yes |
Description

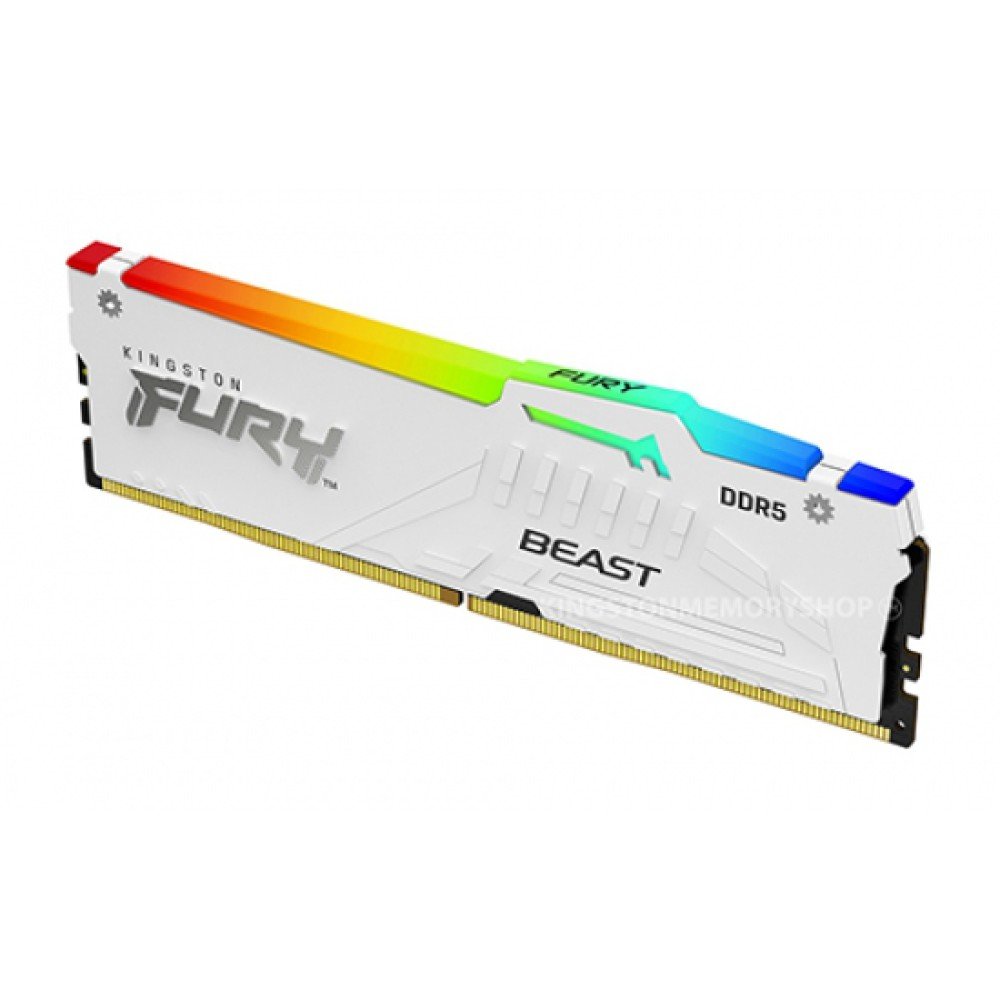

Kingston FURY KF560C40BWA-16 is a 2G x 64-bit (16GB) DDR5-6000 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 40-40-40 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
