৳ 12,000.00 ৳ 11,400.00
Out of stock
| Basic Information | ||
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 | |
| Chipset | AMD B450 Chipset | |
| Form Factor | 12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
|
| Audio | Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 3 x PCIe 2.0 x1 slots |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DDR4 memory slots | |
| Supported Memory | – Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) – For AMD Ryzen Gen3 (R5/R7/R9) – Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE) – For AMD Other CPU – Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) – Dual channel memory architecture – Supports non-ECC UDIMM memory – Supports ECC UDIMM memory (non-ECC mode) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DVI-D port, support a maximum resolution of 1920×1200 @60Hz 1 x HDMI 2.1 port, supports a maximum resolution of 4096×2160@60Hz |
|
| Max Shared Memory | 16GB | |

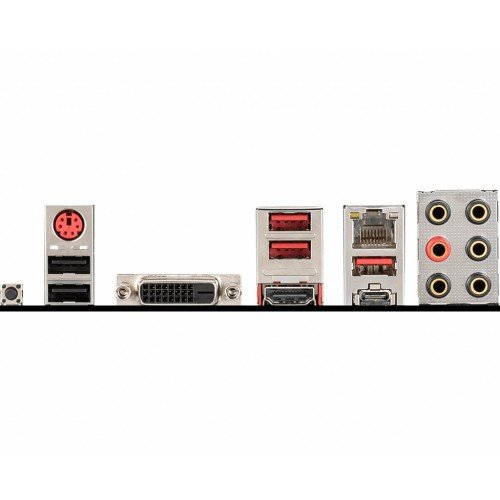

| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 port | |
| DVI-D (s) | 1 x DVI-D port | |
| USB (s) | AMD B450 1x USB 3.2 Gen 2 10Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-A port on the back Panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller | |
| Supported Storage | AMD CPU 2 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devices AMD B450 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Serial Port connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Warranty Information | ||
| Manufacturing Warranty | 03 years warranty | |
