MSI MAG B550M Mortar AMD Micro ATX Gaming Motherboard ( Global version )

৳ 17,700.00

Key Features

  • Model: MSI MAG B550M Mortar
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Premium Thermal Solution
  • Lightning Fast Game experience
  • Supports up to 5100+(OC) MHz

Out of stock

Category: Tags: , , ,

Specification

Basic Information
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset AMD B550 Chipset
Form Factor Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Expansion Slots
PCI 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode
2x PCIe 3.0 x1 slots
M.2 Socket 2x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0×4
Supports 2242/ 2260/ 2280 storage devices
Memory
Type Dual channel memory architecture
Slots 4 x DDR4 memory slots
Supported Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory 128GB
Graphics
Graphics 1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz
1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz
Supports 2-Way AMD CrossFire Technology
Max Shared Memory 16 GB

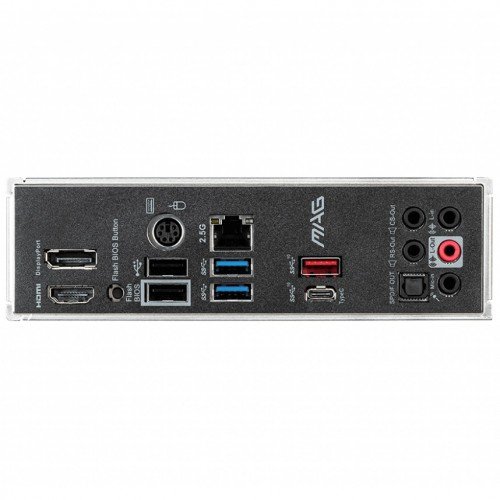

Connector & Ports
HDMI 1x HDMI maximum resolution of 4096×2160 @24Hz
Display Port (s) 1x DisplayPort maximum resolution of 4096×2160 @60Hz
USB (s) AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s) 1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage AMD B550 Chipset

6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0×4
Supports 2242/ 2260/ 2280 storage devices
Audio Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x Clear CMOS jumper
TPM (Trusted Platform Module ) 1xTPM module connector
Warranty Information
Manufacturing Warranty 03 Years Warranty
