MSI PRO B850M-P WIFI AM5 mATX Motherboard
৳ 25,000.00 ৳ 23,200.00
Short Description
- Model: PRO B850M-P WIFI
- Supported CPU: AMD Ryzen 9000/8000/7000 Series for Socket AM5
- Supported RAM: 4x DDR5 UDIMM, Up to 8200 (OC) Mhz
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 3x M.2 Slot, Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Specification
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B850 | |
| BIOS | Flash BIOS Button | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6GM2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/sSupports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||

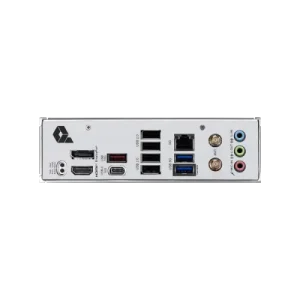

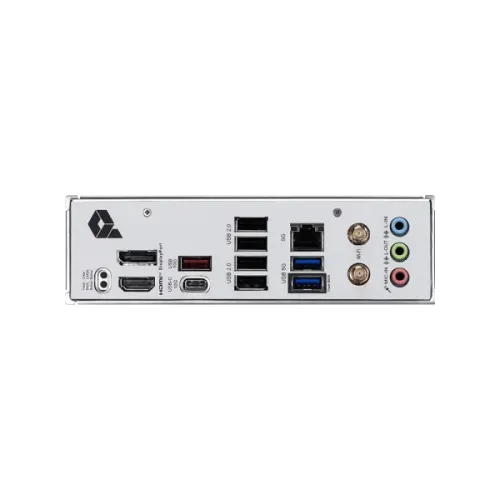

| HDMI | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz |
|
| Display Port (s) | 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6GM2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 5 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Bundled Software | Support for Windows 11 64-bit | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
Description

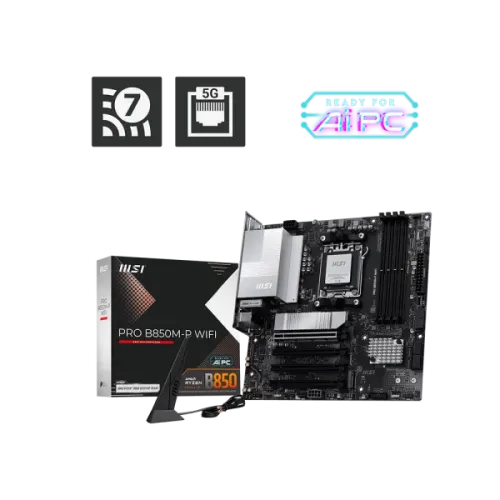

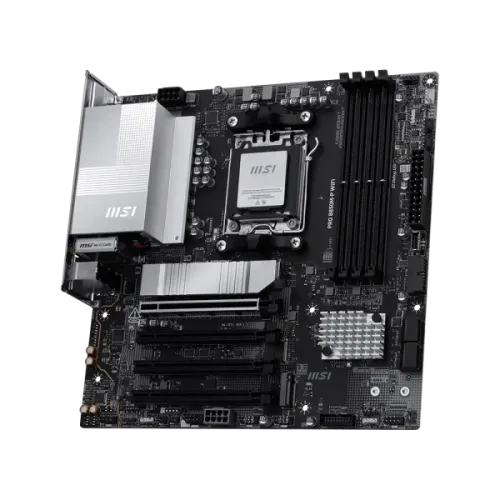

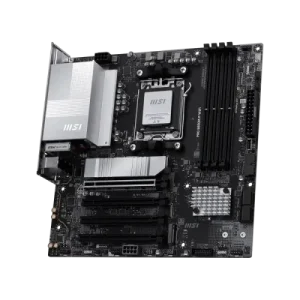

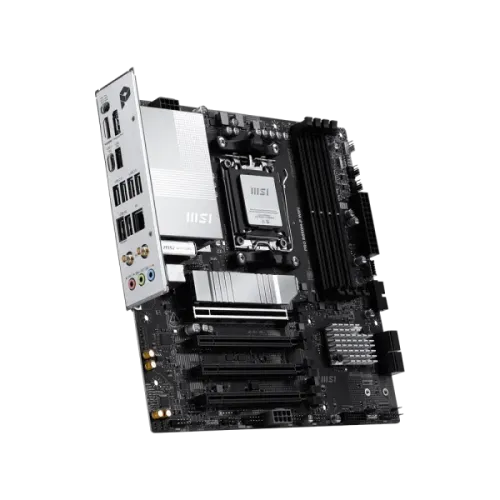

MSI PRO B850M-P WIFI AM5 mATX Motherboard
The MSI PRO B850M-P WIFI is a next-generation micro-ATX motherboard engineered for users who demand uncompromising performance, future-ready connectivity, and efficient thermal management in a compact form factor. Designed to support AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket, it unlocks the full potential of DDR5 memory with speeds reaching up to 8200+ MT/s (OC), ensuring ultra-fast responsiveness for gaming, productivity, and creative workloads. The board’s advanced 7+2+1 direct power phase system, reinforced by Core Boost and Memory Boost technologies, delivers stable and efficient power delivery across all cores—even under intense multitasking or overclocking conditions.Built with a 6-layer PCB using 2oz thickened copper and server-grade materials, the PRO B850M-P WIFI offers enhanced durability, signal integrity, and heat resistance. MSI’s Frozr Guard thermal architecture includes extended heatsinks, high-performance MOSFET pads rated at 7W/mK, and additional choke pads to maintain optimal temperatures during heavy loads. The EZ M.2 Shield Frozr II and tool-less installation clips simplify DIY builds, while the chipset heatsink minimizes dust and noise for long-term reliability.Connectivity is a standout feature, with integrated Wi-Fi 7 and Realtek 8126VB 5G LAN delivering ultra-fast, low-latency networking for streaming, gaming, and professional use. The MSI PRO B850M-P WIFI supports PCIe 5.0 graphics and Gen 5 x4 M.2 SSDs, enabling lightning-fast data transfer and next-gen GPU compatibility. Storage flexibility includes three M.2 slots and four SATA 6G ports, with support for RAID 0, 1, 5, and 10 configurations depending on CPU series. Audio Boost technology powered by Realtek ALC897 ensures immersive, studio-grade sound for gaming and media consumption.The rear I/O panel is packed with high-speed USB 10Gbps Type-A and Type-C ports, HDMI 2.1 and DisplayPort 1.4 for 4K 60Hz output, and dedicated buttons for Flash BIOS and Clear CMOS. Internal headers support RGB and ARGB lighting, multiple fan configurations, TPM 2.0, and front panel USB connectivity, making it ideal for custom builds and future upgrades. With full support for Windows 11 64-bit and compatibility across a wide range of Ryzen processors, the MSI PRO B850M-P WIFI AMD DDR5 AM5 mATX Motherboard is a versatile, high-performance foundation for users building compact yet powerful systems.
