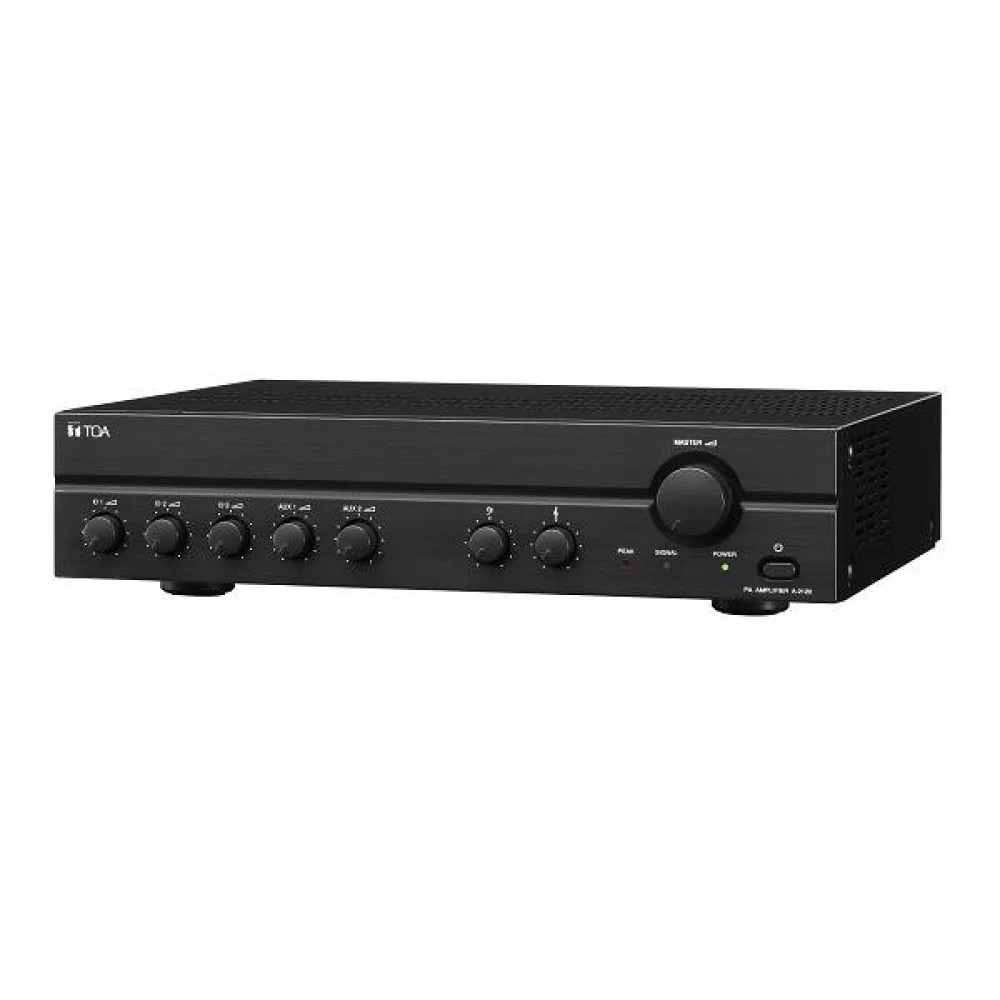

TOA A-2060 Mixer Power Amplifier (H version)

    Call For Price
    Short Description

    • 60 W rated output
    • User-friendly front panel allows easy operation
    • Excellent frequency response
    • 3 electronically balanced microphone inputs, 2 AUX inputs and recording output
    • Phantom power is provided to MIC 1, for supplying power to a condenser microphone
    • Wide tone-control adjustment range of ±10dB for both bass and treble
    • 100 V / 70 V line or 4 Ω speaker outputs
    • Recording output
    • 3 MIC inputs, 2 AUX inputs for tuner, cassette player or other BGM sources
    Category: Tags: ,
      Power Source 220 – 240 V AC, or 24 – 30 V DC
      Rated Output 60 W
      Power Consumption 72 W (EN60065), 150 W (AC operation at rated output),
      4 A (DC operation at rated output)
      Frequency Response 50 – 20,000 Hz (±3 dB)
      Distortion Under 1% at 1 kHz, 1/3 rated power
      Input MIC 1 – 3: -60 dB*, 600 Ω, balanced, phone jack
      AUX 1,2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
      Output Speaker out: Balanced (floating)
      High impedance: 170 Ω (100 V), 83 Ω (70 V)
      Low impedance: 4 Ω (15.5 V)
      Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
      Phantom Power DC +21 V (MIC 1)
      S/N Ratio Over 60 dB
      Tone Control Bass: ±10 dB at 100 Hz
      Treble: ±10 dB at 10 kHz
      Muting MIC 1: Mutes other input signals by 0 – 30 dB attenuation
      Indicator Power, signal, peak
      Finish Panel: ABS resin, black
      Case: Steel plate, black
      Dimensions 420 (W) × 100.9 (H) × 280.3 (D) mm (16.54″ × 3.97″ × 11.04″)
      Weight 7 kg (15.43 lb)
